TB 110

Mobile Belt Conveyor for Applications with Low Clearances

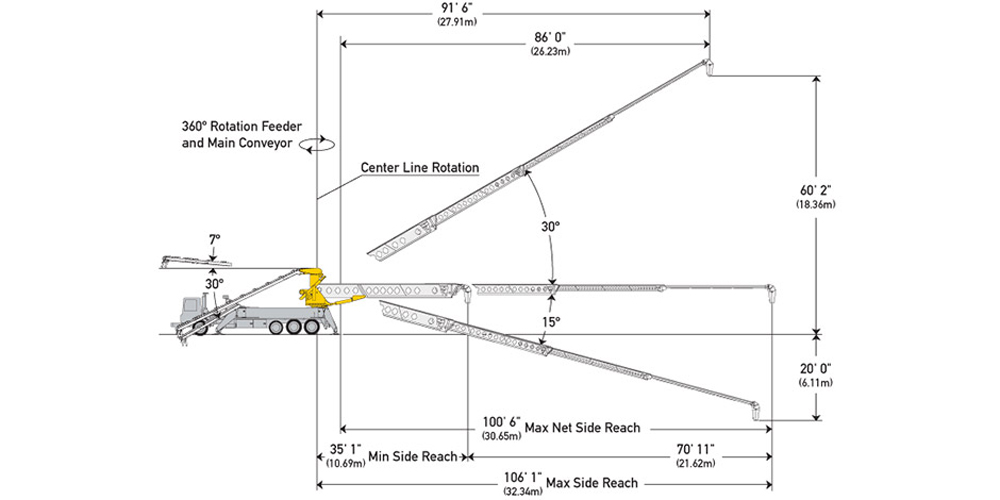

Operating at up to 5 m³ per minute, the Putzmeister Telescopic Belt Conveyor Telebelt® TB 110 can quickly convey a wide variety of materials ranging from sand to 10 cm gravel and rock. The four-section telescopic conveyor provides 32.33 m of horizontal reach in heights as low as 4.84 m with smooth, surge-free conveying. Setup is quick and easy in congested areas, even in rough terrain, with its unique butterfly outriggers.

Key Features

For a variety of material from non pumpable concrete to sand and gravel
Six hopper options to fit different job needs
Places material at high volumes
Reversing conveyor feature to switch direction of material flow

Technical Details

Documents

Brochures

Telebelt TB110 Brochure US

pdf | 4 MB

Telebelt TB110 Brochure US

pdf | 4 MB
